Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel (BHD.pdf)
Indoor LED Screen Parameters
| | BHD-1.5 | BHD-1.6 | BHD-1.8 | BHD-2.5 | BHD-3 |
| Physical Pitch | 1.579 mm | 1.667 mm | 1.875mm | 2.5mm | 3mm |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD2121 | SMD2121 |
| Pixel Density | 401,110 pixels/sqm | 360,000 pixels/sqm | 284,444 pixels/sqm | 160,000 pixels/sqm | 111,110 pixels/sqm |
| Module Dimensions(W*H)(mm) | 240*240 | 240*240 | 240*240 | 240*240 | 240*240 |
| Panel Dimensions(mm) | 480*480*80 | 480*480*80 | 480*480*80 | 480*480*80 | 480*480*80 |
| Physical Resolution of Panel(W*H) | 304*304 | 288*288 | 256*256 | 192*192 | 160*160 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 7 kg/panel | 7 kg/panel | 7 kg/panel | 7 kg/panel | 7 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 258 W/panel | 264 W/panel | 260 W/panel | 215 W/panel | 235 W/panel |
| Max Power Consumption | 715 W/panel | 680 W/panel | 690 W/panel | 640 W/panel | 670 W/panel |
| Refresh Rate | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz |
| Brightness | 600-1,000 nits | 600-1,000 nits | 600-1,000 nits | 600-1,000 nits | 600-1,000 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
Fixed LED Display Introductions
Die-casting aluminum cabinet size: 480*480*80mm weight: 7 KG
Fan-less design
Ensures a noiseless LED screen,making it suitable for the high-level applications.
No flat & power cable on module
Everything is connected with pin type socket.
Calble free design makes it fast for installation and stable in data/power transmission.
Convenient and strong Locks
Quick locks provide easy installation,
Which can reduce the cost and time of installation.
Cat-6 data cable connection ensures stable data transmission.
Seamless connection
The cabinet precision is 0.05mm to make sure of seamless connection.
Both front and rear service
Front service makes it easy to install the display onto the wall.
High contrast ratio, high refresh rate and gray scale
Make it possible for high level occasions like TV station.

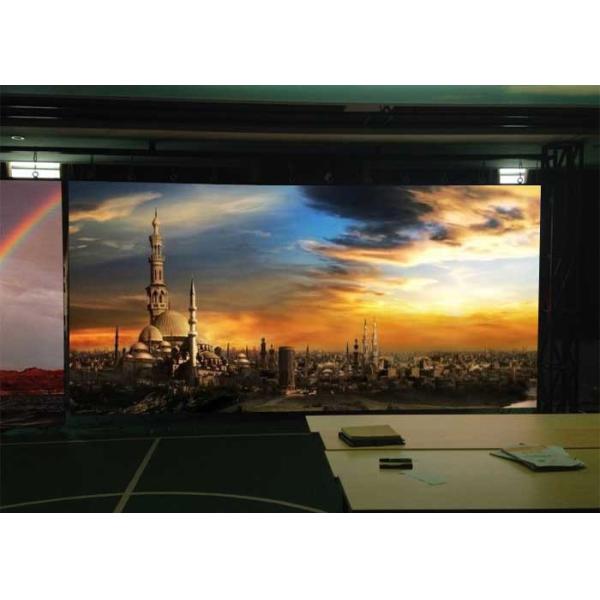

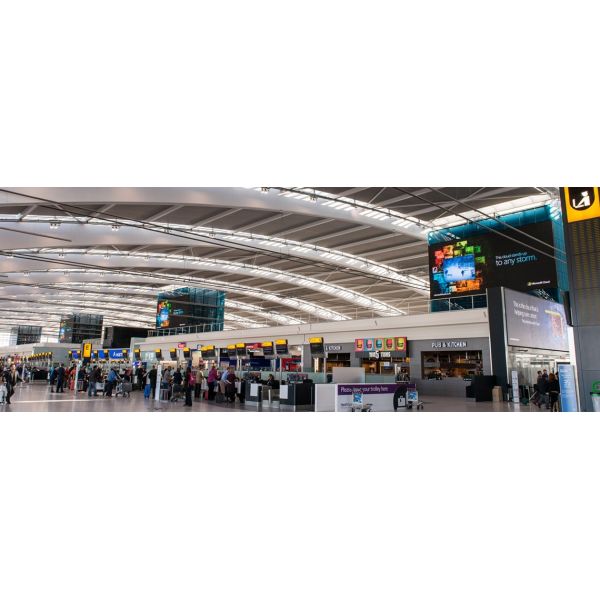

Front Service LED Panel Cases
About Us
1. Rich experience: established in 2005; familiar with technical and material about LED display.
2. Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice, with the lowest-cost custom service.
3. Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
4. Good quality:All products have passed CE, ROHS, FCC certification.
5. Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
6. We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
FAQ
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
