High Brightness LED Stage Display Screen P2.97 P3.91 P4.81 For Performance Event

LED Vision Technology Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High Brightness LED Stage Display Screen P2.97 P3.91 P4.81 For Performance Event

  • 1
  • 2
  • 3

Pixel Configuration : SMD2121

Control System : Novastar

Pannel Material : Die-Casting Aluminum

Viewing Angle : 160°/140°

Refresh Rate : >1920Hz

Contrast Ratio : 4000:1

Panel Dimensions : 500 x 500 x 80mm / 500 x 1000 x 80mm

Weight : 8 / 14kg/panel

Brand Name : Bakovision

Model Number : BIR-II Series

Certification : CE ETL FCC RoHS ISO CCC

Place of Origin : China

MOQ : 1 sqm

Price : $450 per Sqm

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10,000 sqm/month

Delivery Time : 15-25 days

Packaging Details : Wooden case or flight case

Contact Now

P2.97 P3.91 P4.81 HD Indoor Rental LED Display Screen


Rnetal Screen Features and Advantages:

  • Curved angle : ±10° adjustable, creative design to meet your requirement;
  • Panel Size: The Panel size is 500 x 500mm and 500 x 1000mm, there can make the screen size as : 4*3m ,6*4m,9*5m etc . It is suitable for 4:3 ,16:9 ratio ;Also you can adjust the screen size free as your wish.
  • High brightness: More than 1200nits
  • Convenient Assemble : Smart fast side locks make screen assemble fast and easier;
  • Seamless connection: superior color uniformity and stunning image quality, there is not black gap line on connection nor information missing;
  • Good heat dissipation: New cabinet design of LED screen without fan, good heat dissipation,due to die-casting alumium material ,concise, slim and light weight;
  • Convenient Control: Digital Video walls can be connected with nearly any equipment , including to PCs, DVD and camera . That is conveniently for you to present your data;
  • 2 Years Warranty : we can repair each LED lamps, so the cost of maintain is lower,and easy to repair;Also you can send back the module to us to fix.
  • High Quality : we use famous IC ,like MBI5020,MBI5024,MBI5030 and high quality lamp, Nationstar and so on, ensure high brightness;


LED Screen Specification:

Physical Pitch2.97mm3.91mm4.81mm
Pixel ConfigurationSMD2121SMD2121SMD2121
Pixel Density112,896 pixels/㎡65,536 pixels/㎡43,264 pixels/㎡
Module Dimensions(W x H) (mm)250 x 250250 x 250250 x 250
Panel Dimensions (mm)500 x 500 x 80 / 500 x 1000 x 80500 x 500 x 80 / 500 x 1000 x 80500 x 500 x 80 / 500 x 1000 x 80
NO. of Modules Per Panel (W x H)2 x 2 / 2 x 42 x 2 / 2 x 42 x 2 / 2 x 4
Physical Resolution of Module (W x H)84 x 8464 x 6452 x 52
Physical Resolution of Panel (W x H)168 x 168 / 168 x 336128 x 128 / 128 x 256104 x 104 / 104 x 208
Panel MaterialDie-Casting AluminumDie-Casting AluminumDie-Casting Aluminum
Single Cabinet Weight8 / 14 kg/panel8 / 14 kg/panel8 / 14 kg/panel
Processing16bit16bit16bit
Colours281 trillion281 trillion281 trillion
Contrast Ratio5,000 : 15,000 : 15,000 : 1
Average Power Consumption400W /Sqm325W /Sqm310W /Sqm
Max Power Consumption800W /Sqm780W /Sqm750W /Sqm
Operating Temp/Humidity-10℃ - 60℃ / 10℃ - 60℃-10℃ - 60℃ / 10℃ - 60℃-10℃ - 60℃ / 10℃ - 60℃
Storage Temp/Humidity-30℃ - 60℃ / 10℃ - 60℃-30℃ - 60℃ / 10℃ - 60℃-30℃ - 60℃ / 10℃ - 60℃
Refresh Rate>1,920 Hz>1,920 Hz>1,920 Hz
Brightness≥1,200nits≥1,200nits≥1,200nits
Horizontal Viewing Angle160°160°160°
Vertical Viewing Angle140°140°140°
Expected Lifetime100,000 Hrs100,000 Hrs100,000 Hrs
Max Stacking20 / 1020 / 1020 / 10
Max Hanging20 / 1020 / 1020 / 10
ServicingFront / RearFront / RearFront / Rear
IP Rating (Front/Rear)IP 40 / IP 21IP 40 / IP 21IP 40 / IP 21
Scan Method1/28 Scan1/16 Scan1/13 Scan
CertificationCCC, CE, ETL, RoHSCCC, CE, ETL, RoHSCCC, CE, ETL, RoHS

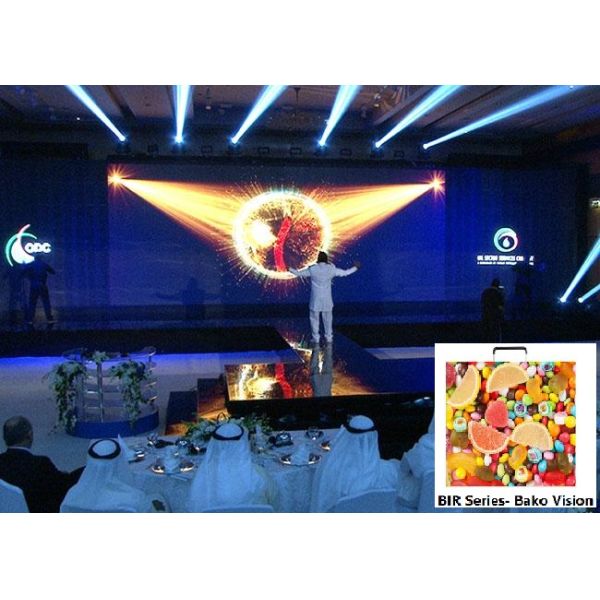

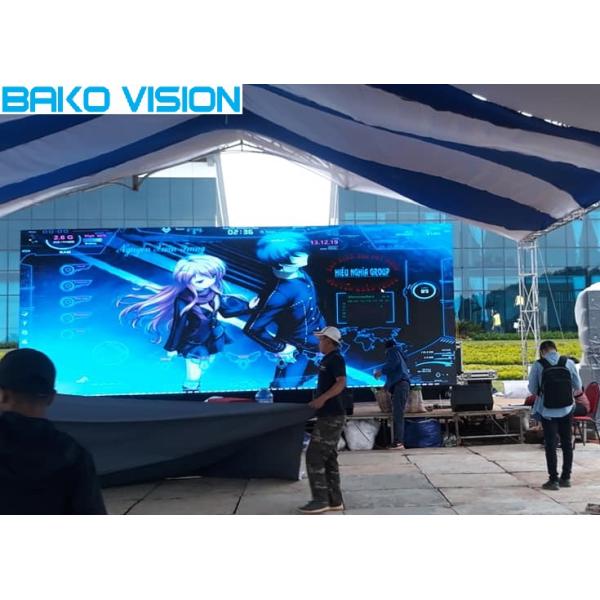

Indoor stage screen Case

High Brightness LED Stage Display Screen P2.97 P3.91 P4.81 For Performance Event
High Brightness LED Stage Display Screen P2.97 P3.91 P4.81 For Performance Event

FAQ
1. How can I place an order?
Please provide all the details of your requirements for our reference So we can send you the offer at the first time.Feel free to contact with me by What's APP/email /phone to avoid any delay.
2. What kind of display we provide?
We have indoor/outdoor/LED stage/Sport display/ Irregular LED display/monitor screen for you choose.
3. Are you manufacturer of led display.If yes, in which city?
Yes, We already have more than 10 years experience for LED display as a LED manufacturer located in Shenzhen
4. How long can I get the goods?
Our product leadtime is about 10-25 working days.When you confirm the order, we can start production at once receiving your deposit(30% TT in advance). we will update the production details in time.we will notice you when we can delivery the goods to you after we get full payment.
5.May I know the package details?
For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
6.What is the payment method?
We support the payment methods as TT, L/C.
7. What's the pixel pitch for Indoor LED Display Screen?
Indoor (P2.6mm/P2.97mm/P3.91/P4.81mm/P6.25mm) led display screen
8.Can it play HD video?
Yes, it can realize HD video function with Linsn/nova controlling system
9.What's the controlling system?
Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
10. What is your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
