High Transparent LED Screens Lightweight Video Wall Display
Features:

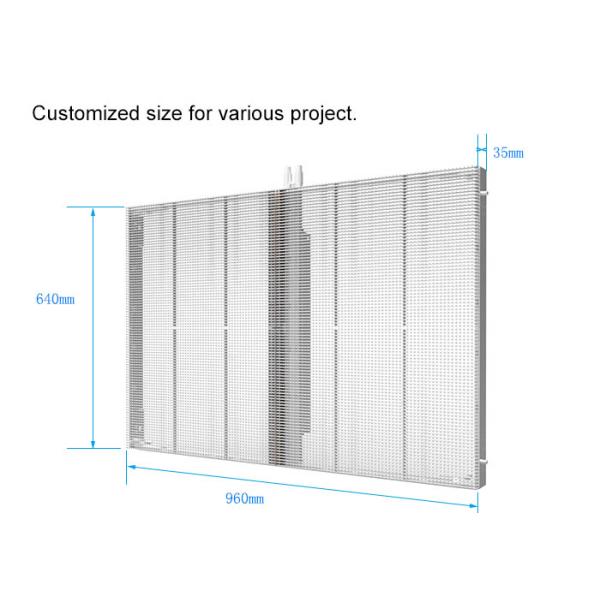

1. Customized is available
We owns transparent led screen with different type and different size,the standard cabinet could not meet the needs of all projects.It can be customized the best product solution according to the reality situation, to ensure the permeability of transparent LED display, completeness of display and consistency.
2. Ultra-transparent

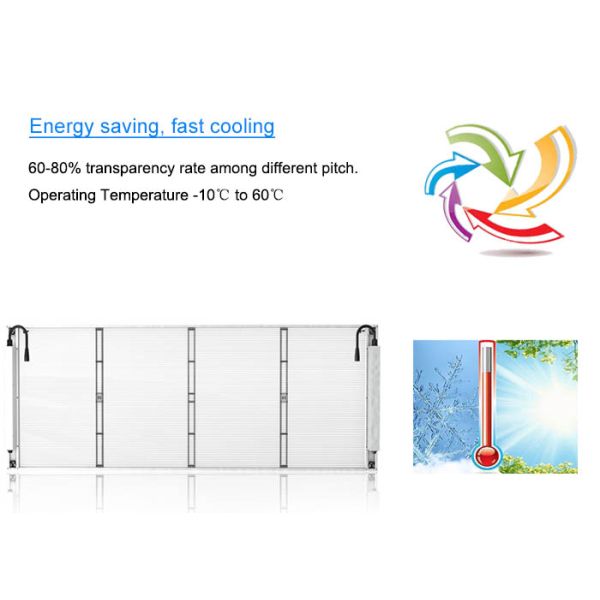

Permeability is 60% -80%, translucent, ventilation, does not affect the lighting and line of sight
3. Embedded-In SMD technology
Lamp embedded into PCB board with protection,to increase the stability and anti-dead lamp
4. Integrated Power and Data

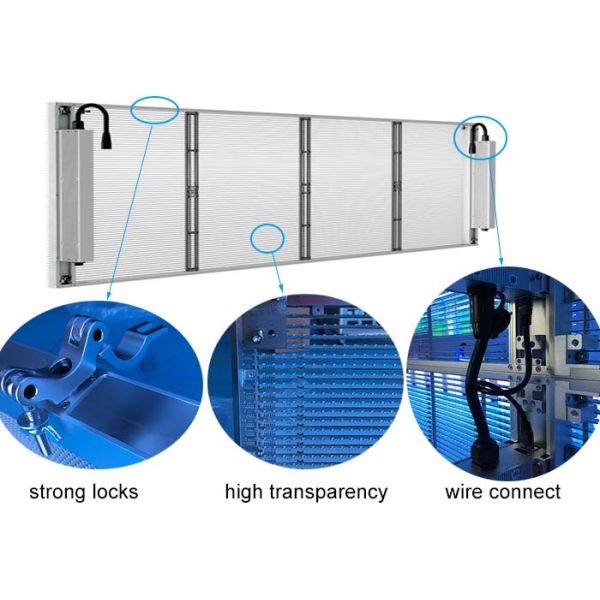

Easy and quick interconnection between panels with integrated power and data cables.
5. Fast installation and Easy Maintenance
Super slim and lightweight design,rear access,save the time to install and maintain.
Parameters:
| Pixel Pitch |
3.75x6.67mm |
3.75x8mm |
5x6.67mm |
5x8mm |
| Pixel Configuration |
SMD 1921 |
SMD 1921 |
SMD 3528 |
SMD 3528 |
| Pixel Density |
39,900 pixls/m² |
33,250 pixls/m² |
30,000 pixls/m² |
25,000 pixls/m² |
| Module Dimension |
480 x 320 mm |
| Panel Dimention |
960 x640 mm |
| Resolution of Module |
128 x48 |
128 x 40 |
96 x 48 |
96 x 40 |
| Panel Material |
Aluminum |
| Weight |
11 kg/m² |
10.2 kg/m² |
10 kg/m² |
9.5 kg/m² |
| Gray Scale |
16 bits(281 trillion colors) |
| Conntrast Ratio |
2000 : 1 |
| Average ower Consumption |
207 W/sqm |
201 W/sqm |
209 W/sqm |
203 W/sqm |
| Max ower Consumption |
690 W/sqm |
670 W/sqm |
696 W/sqm |
670 W/sqm |
| Refresh Rate |
1920 Hz |
| Brightness |
5500 nits |
| Expected Lifetime |
100,000 Hrs |
| IP Rating(front/rear) |
IP30 |
| Servicing |
Rear |
| Certification |
CCC,CE,ETL,FCC |

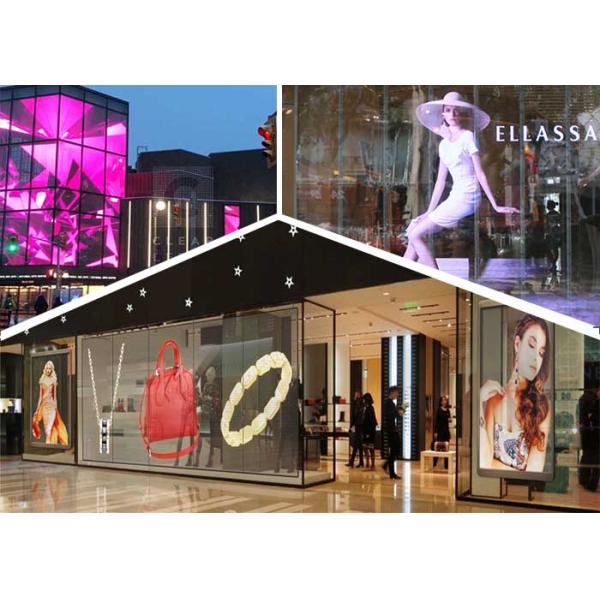

Cases:
About our company:

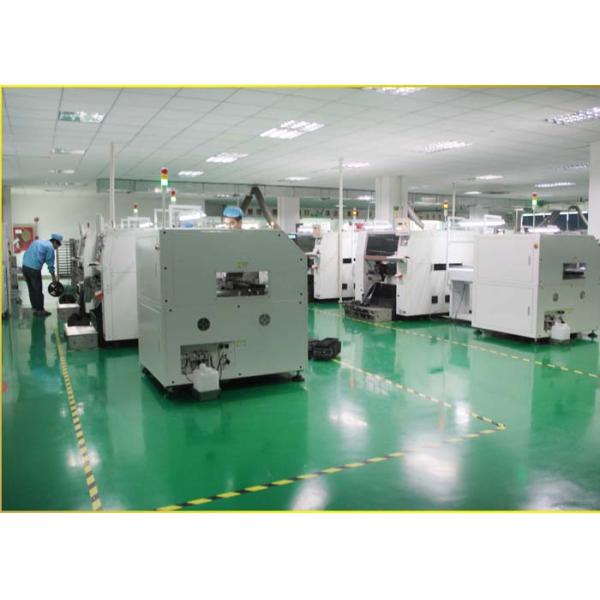

LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
FAQ:
1. How can you ensure the led display product quality?
Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, to ensure transportation safety and normal use of our products.
2. What is your terms of payment?
T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.What is your pre-sale and post-sale service?
For pre-sale service, we have professional sales team and technical team,who are willing to answer your question within 24 hours.
For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,and we can also send the technicals to your country,in general,our led display will not have a big problem,you can rest assured to buy.
Product Tags:
|
|
High Transparent LED Screens Lightweight Video Wall Display Images
|
