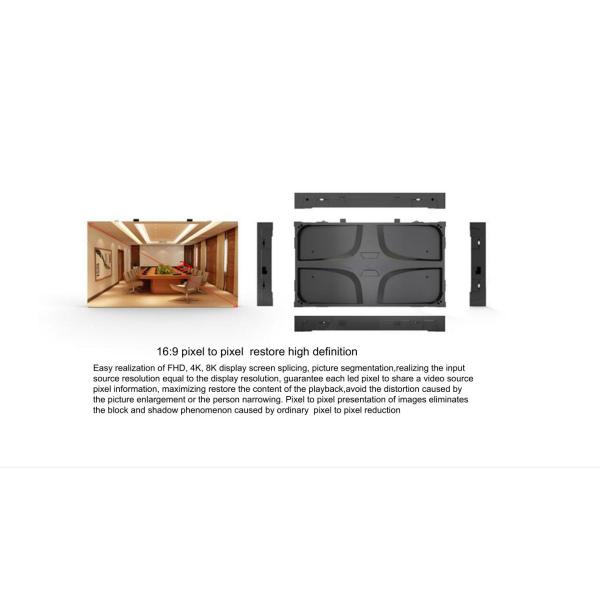

Indoor Fixed LED Display Fine Pitch 16:9 Format Option for Control Room Meeting Room
1-UHD.pdf
1.Die-casting Design

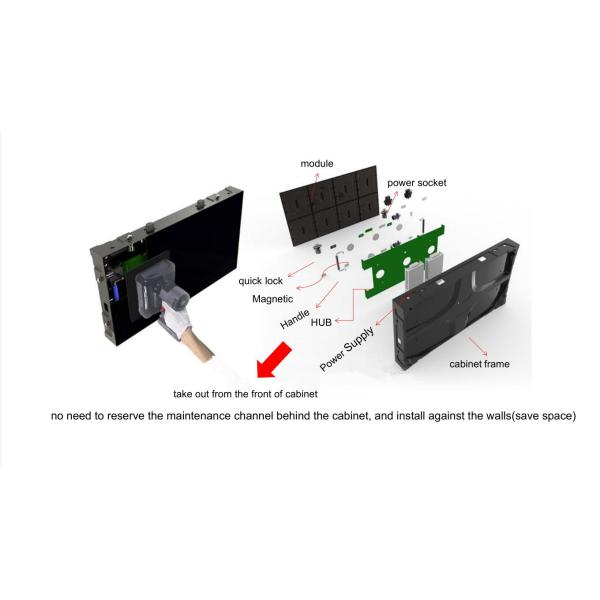

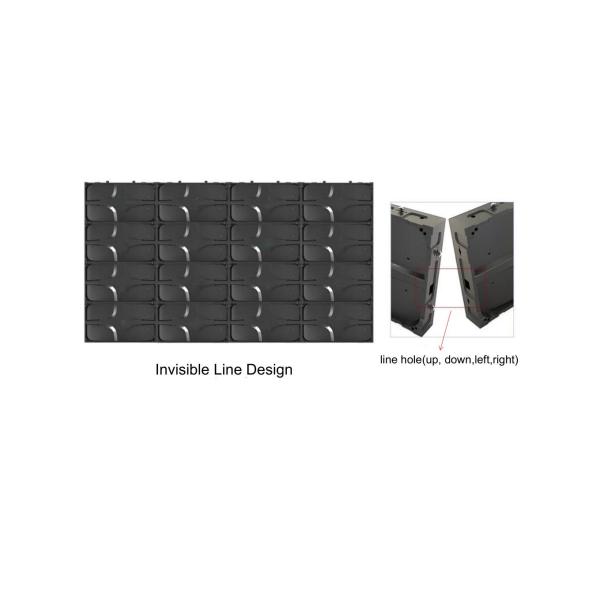

2. Cable-less, all the cables are inside of the cabinet

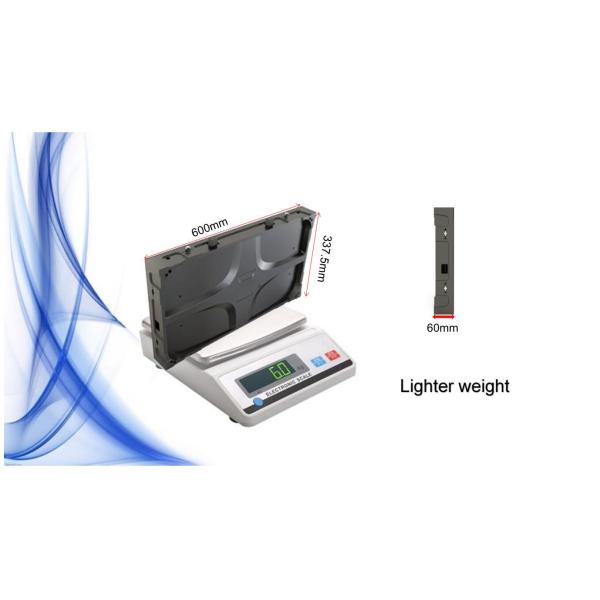

3. Super thin and lightweight, only 6kg/panel

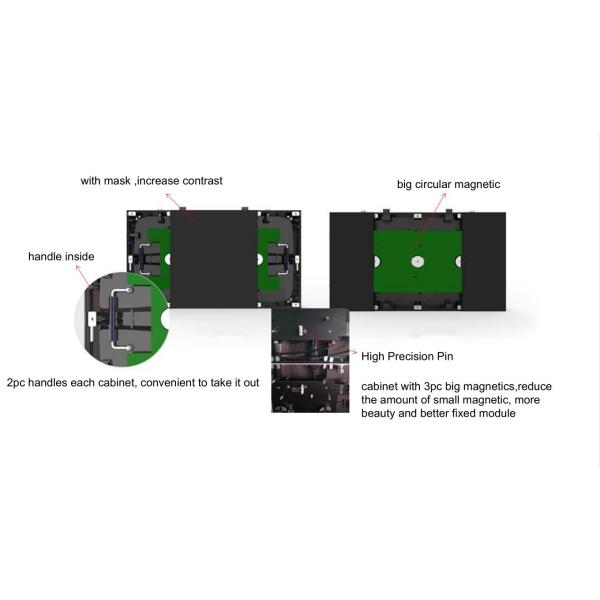

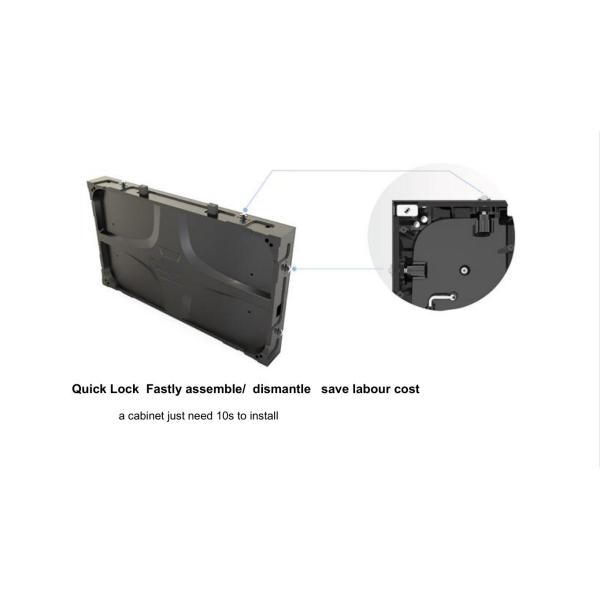

4. Quick Lock--save time and labor cost
Parameter:
| Model | UHD -1.25 | UHD -1.5 | UHD -1.8 | UHD -2.3 |
| Pixel Pitch | 1.25mm | 1.56mm | 1.875mm | 2.3mm |
| Cabinet Size | 600*337.5mm | 600*337.5mm | 600*337.5mm | 600*337.5mm |
| Cabinet Weight (kg) | 6kg/panel | 6kg/panel | 6kg/panel | 6kg/panel |
| Brightness(cd/m²) | 600~800 | 600~800 | 600~800 | 600~800 |
| Refresh Rate | ≥2880Hz | ≥2880Hz | ≥2880Hz | ≥2880Hz |
| Viewing Angle(H/V) | 160°/140° | 160°/140° | 160°/140° | 160°/140° |
| Power Consumption (Max) W/m² | 800 | 800 | 800 | 800 |
| Power Consumption (Avg) W/m² | 400 | 400 | 400 | 400 |
| IP Rating | IP 40/IP 21 | IP 40/IP 21 | IP 40/IP 21 | IP 40/IP 21 |
FAQ:
1, What is the warranty of your led display?
A: We offer 2 years warranty and more than 100000 hours screen life span
2, what is your payment term? How long it takes to delivery?
A: We usually accapt the T/T or L/C. Both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery. The lead time is usually 20 day.
3, How can you ensure the led display product quality?

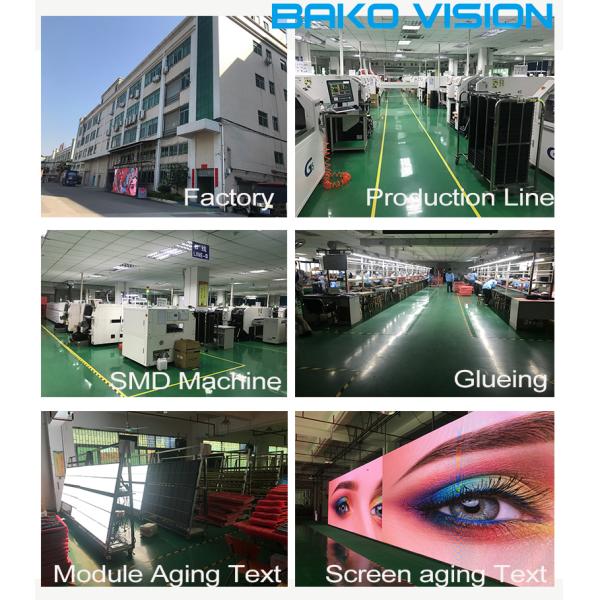

A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, to ensure transportation safety and normal use of our products.
4, What is your pre-sale and post-sale service?
A: For pre-sale service, we have professional sales team and technical team,who are willing to answer your question within 24 hours.
For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,and we can also send the technicals to your country,in general,our led display will not have a big problem,you can rest assured to buy.
Company Information:
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding enterprises (Stock Code: 871745), focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
